Raceways & Cable Trays

Raceways & Cable Trays in Delhi

At Masuden Private Limited, we are dedicated to delivering high-quality cable tray systems that offer reliable and efficient cable management solutions across diverse industries. With our strong technical expertise and consistent focus on superior quality, we have established ourselves as a trusted provider of advanced cable tray solutions in Delhi. Our products are engineered with precision to enhance the organization and support of electrical cables, ensuring maximum safety, durability, and ease of maintenance.

ENQUIRE NOW

Product List

Perforated Cable Trays
Perforated Cable Trays Bends
Ladder Cable Trays
Ladder Cable Trays Bends
Ladder Cable Tray Bolted
Ladder Cable Tray Bolted Bends
Folded Ladder Cable Tray
Folded Ladder Cable Tray Bends
Race Ways
Race Ways Junction Boxes
Cable Trays Support System
Copper Strips
GI Strips
Electrode

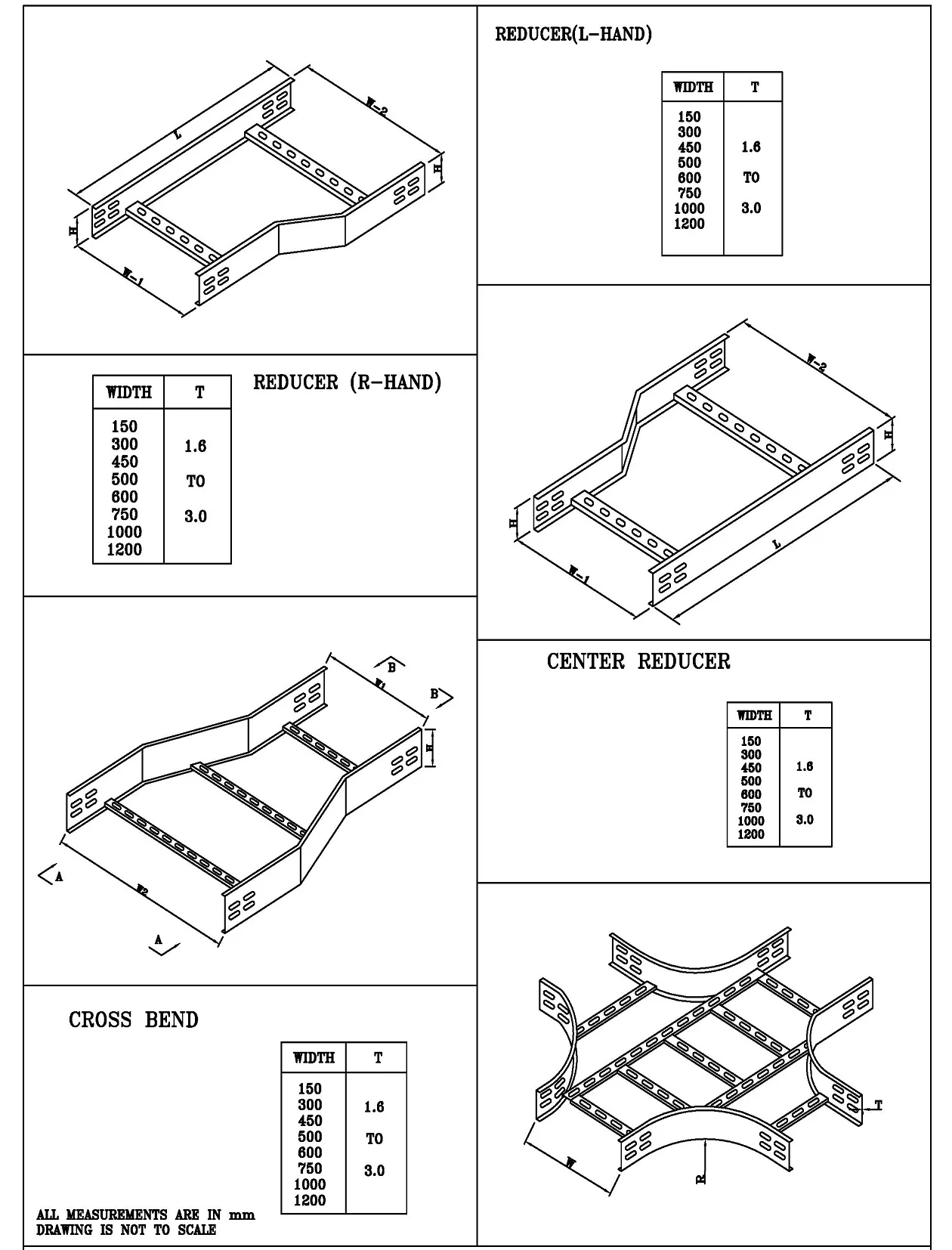

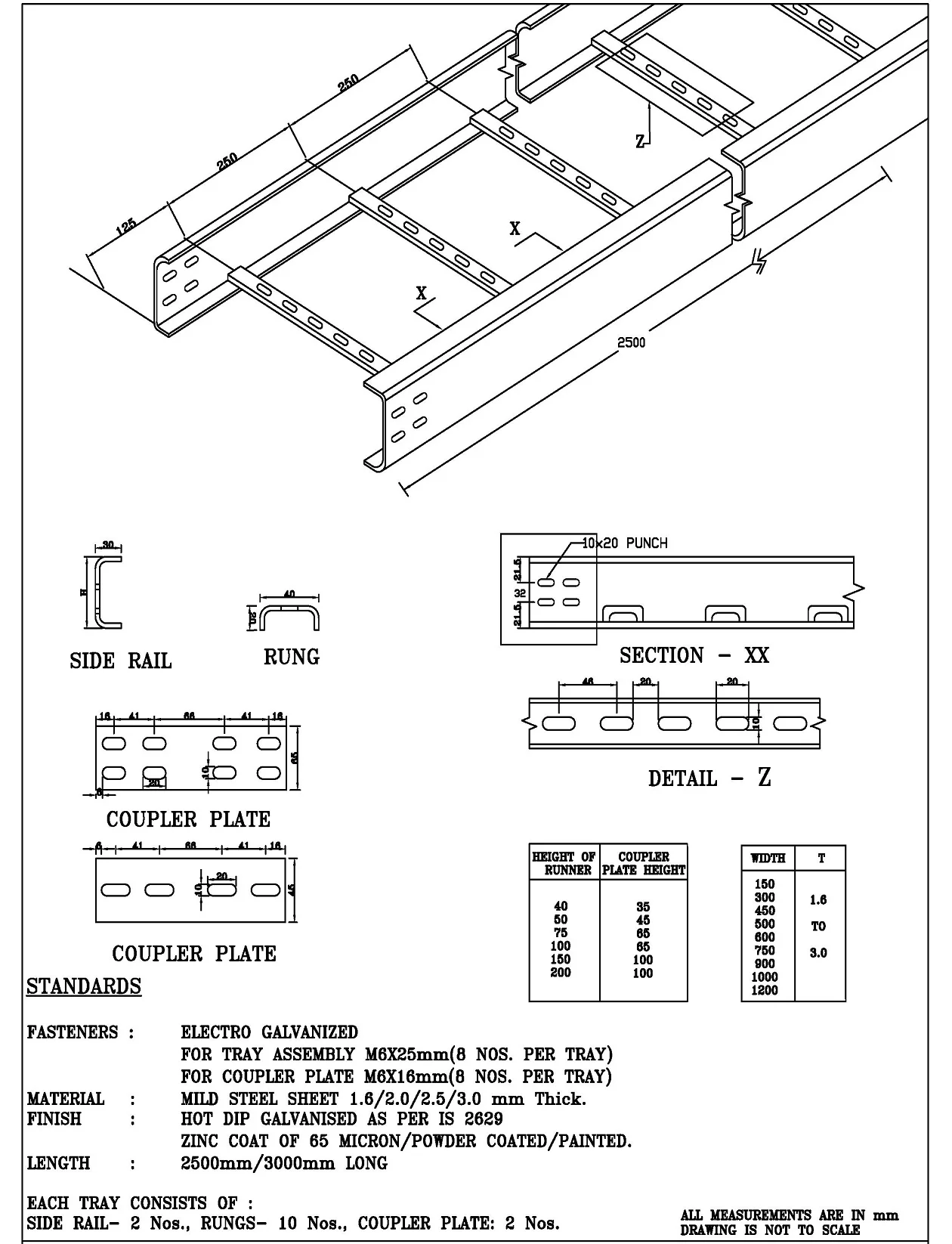

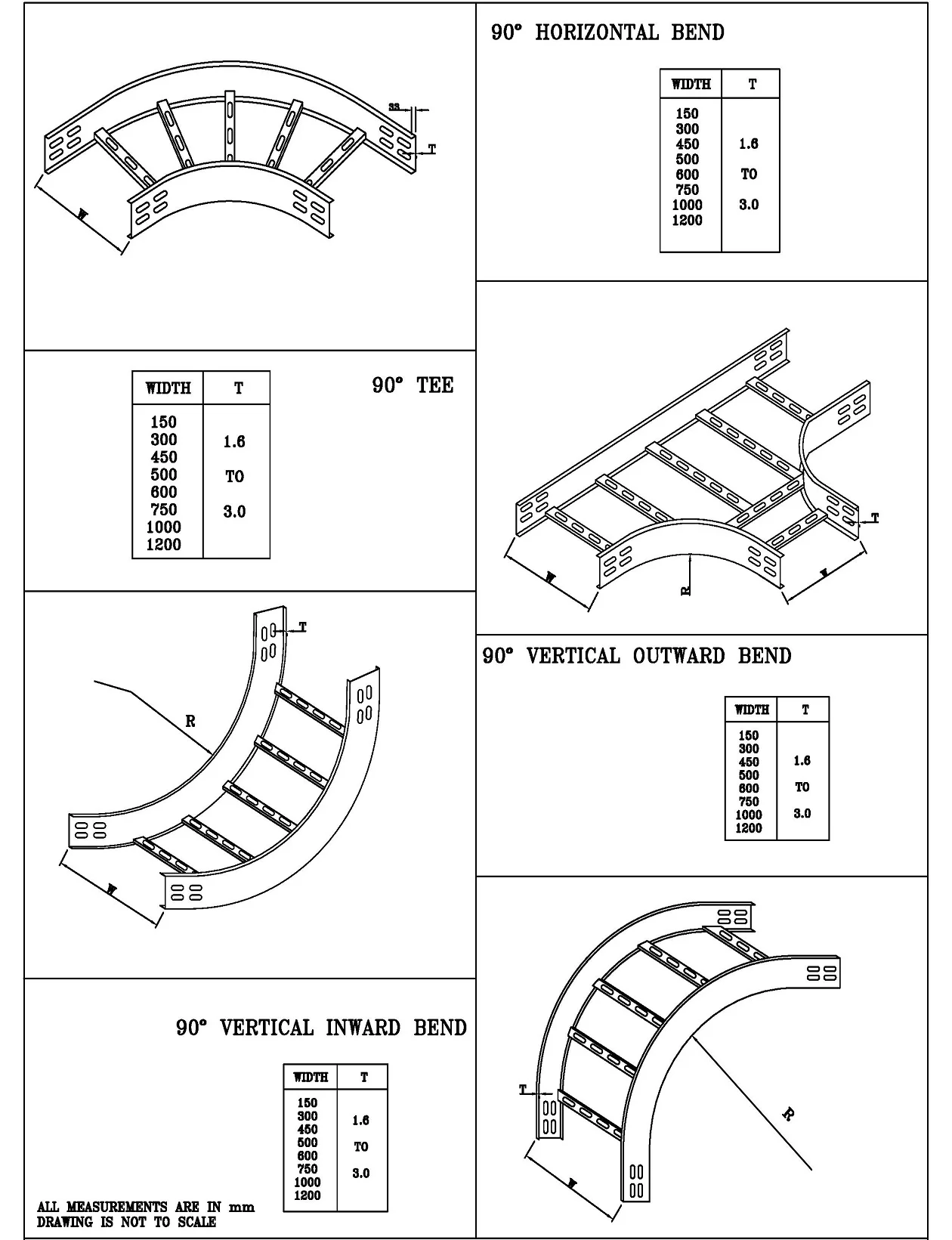

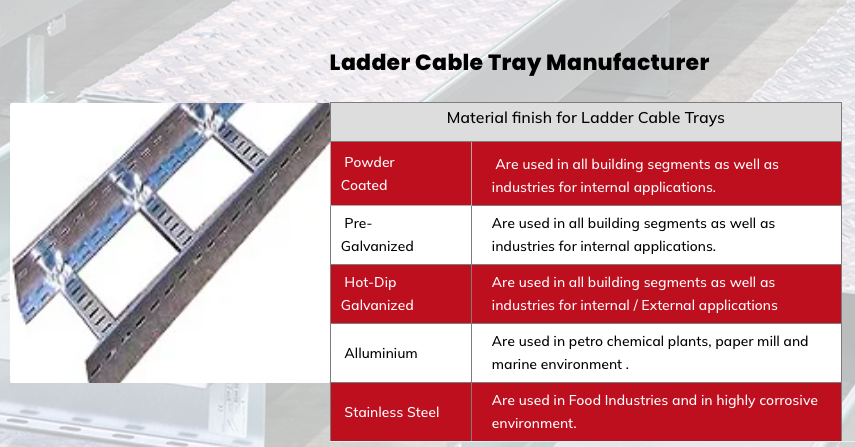

Ladder Cable Trays

Ladder cable tray should be used for power cables

Width (mm)	Height (mm)	Thickness (mm)
100	50 / 60 / 75 / 100	1.6 / 2.0 / 2.5 / 3.0
150	50 / 60 / 75 / 100	1.6 / 2.0 / 2.5 / 3.0
200	50 / 60 / 75 / 100	1.6 / 2.0 / 2.5 / 3.0
300	50 / 60 / 75 / 100	1.6 / 2.0 / 2.5 / 3.0
450	50 / 60 / 75 / 100	1.6 / 2.0 / 2.5 / 3.0
600	50 / 60 / 75 / 100	1.6 / 2.0 / 2.5 / 3.0
900	50 / 60 / 75 / 100	1.6 / 2.0 / 2.5 / 3.0
1000	50 / 60 / 75 / 100	1.6 / 2.0 / 2.5 / 3.0
1200	50 / 60 / 75 / 100	1.6 / 2.0 / 2.5 / 3.0
1500	50 / 60 / 75 / 100	1.6 / 2.0 / 2.5 / 3.0

Specification	Details
Sheet Thickness	1.6 / 2.0 / 2.5 / 3.0 mm
Side Height	50 / 75 / 100 mm
Width	100 / 150 / 200 / 300 / 450 / 600 / 750 / 900 / 1000 / 1200 / 1500 mm
Length	2500 / 3000 mm
Brand	MASUDEN
Unit	Meter

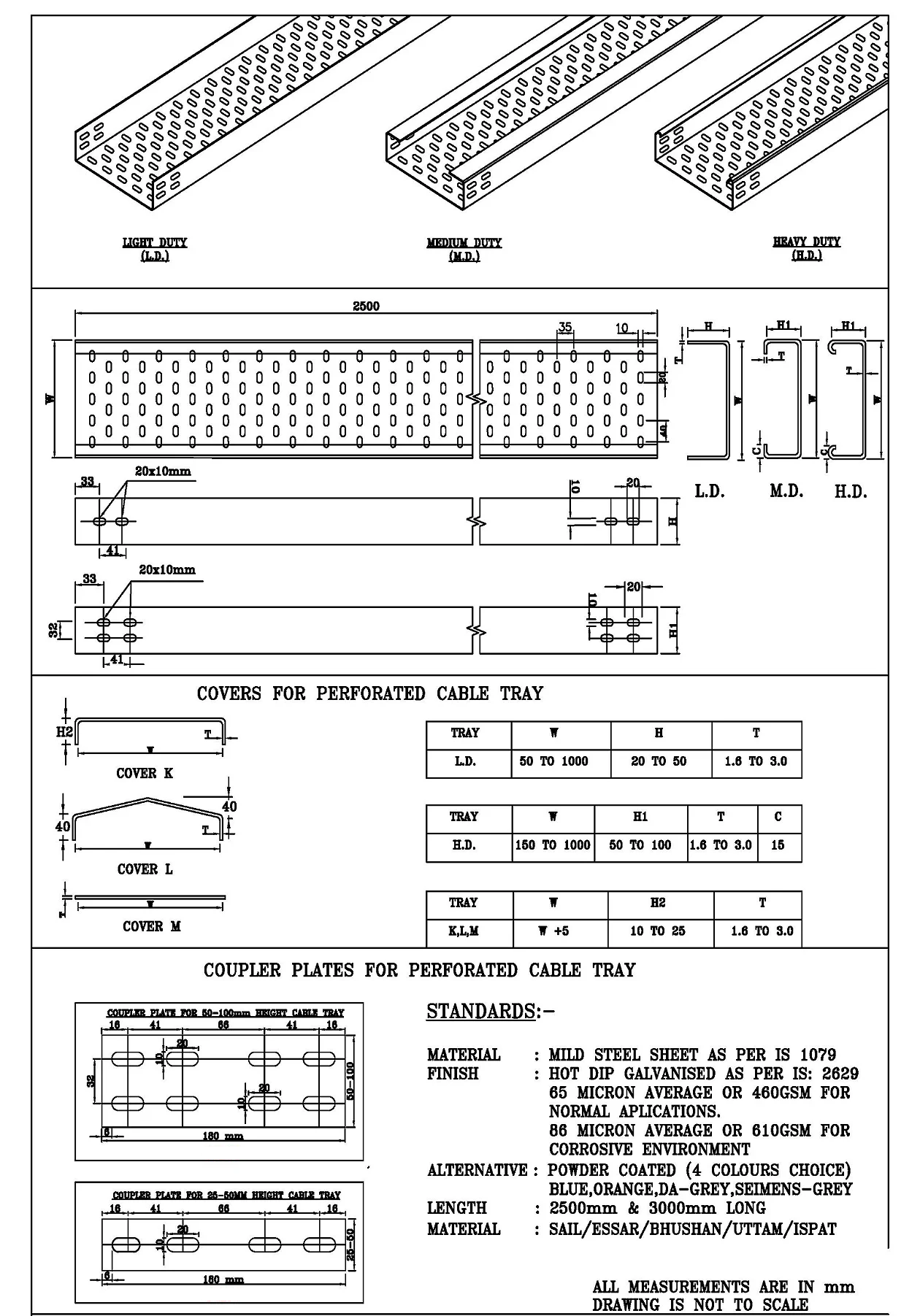

Perforated Cable Trays

Specification	Details
Light Duty Perforated Cable Tray Light duty Perforated Cable Tray with special perforation in the base with moderate ventilation with added cable support advantage.
Sheet Thickness	1 / 1.6 / 2.0 / 2.5 / 3.0 mm
Side Height	25 / 35 / 40 / 60 / 75 / 100 mm
Width	50 / 100 / 150 / 200 / 250 / 300 / 450 / 600 / 900 / 1000 / 1200 mm
Length	2500 / 3000 mm
Brand	MASUDEN
Unit	Meter
Medium Duty Perforated Cable Tray Medium duty Perforated Cable Tray with special perforation right angle edge in side rail for reinforcement and edge protection.
Sheet Thickness	1 / 1.6 / 2.0 / 2.5 / 3.0 mm
Side Height	25 / 35 / 40 / 60 / 75 / 100 mm
Width	50 / 100 / 150 / 200 / 250 / 300 / 450 / 600 / 900 / 1000 / 1200 mm
Length	2500 / 3000 mm
Brand	MASUDEN
Unit	Meter
Heavy Duty Perforated Cable Tray Heavy duty Perforated Cable Tray with special perforation in the base and rolled edge in side rail for reinforcement and edge protection including cable tray connector sets.
Sheet Thickness	1 / 1.6 / 2.0 / 2.5 / 3.0 mm
Side Height	25 / 35 / 40 / 60 / 75 / 100 mm
Width	50 / 100 / 150 / 200 / 250 / 300 / 450 / 600 / 900 / 1000 / 1200 mm
Length	2500 / 3000 mm
Brand	MASUDEN
Unit	Meter

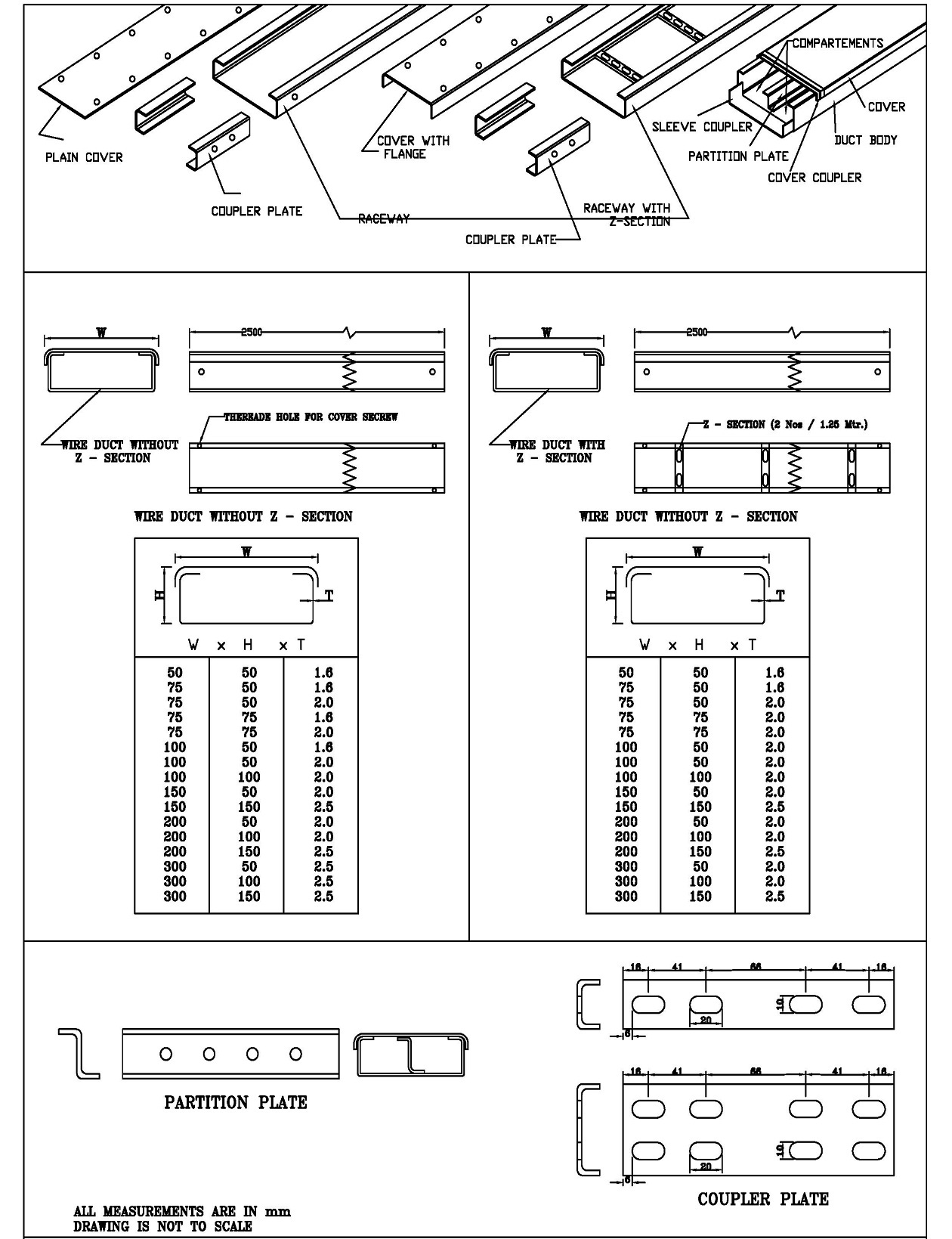

Raceways

Raceway Cable Management Systems comprises four basic groups of equipment’s which can be used together to provide the desired underfloor configuration

Features of Raceways

Thickness available 1.6, 2.0, 2.5, 3.0mm
Jointing Sleeves for 25 mm height to 50mm height has to be ordered separately.
Customer also have an option of partitions in Race Ways to distribute Data, Power and Voice Cables can be run individually in separate compartments.
Customers also have the option of customized Race Ways.
We can manufacture ladder type cable trays of up to 2500mm in length & up to 400mm in width.

S. No.	Size (mm)	Thickness (mm)	Number of Compartments
MASUDEN-R-01	50X25	1.6/1.6	1
MASUDEN-R-02	75X25	1.6/1.6	1
MASUDEN-R-03	100X25	1.6/2.0	1
MASUDEN-R-04	100X40	2.0/2.0	1
MASUDEN-R-05	150X40	1.6/2.0	1
MASUDEN-R-06	150X50	1.6/2.0	1
MASUDEN-R-07	150X50	2.0/2.0	1
MASUDEN-R-08	200X40	1.6/2.0	1
MASUDEN-R-09	200X40	2.0/2.0	1
MASUDEN-R-10	200X40	2.0/2.5	1
MASUDEN-R-11	250X40	1.6/2.0	1
MASUDEN-R-12	250X40	2.0/2.0	1
MASUDEN-R-13	250X40	2.0/2.5	1
MASUDEN-R-14	250X40	2.0/3.0	1
MASUDEN-R-15	300X40	1.6/2.0	1
MASUDEN-R-16	300X40	2.0/2.0	1
MASUDEN-R-17	300X40	2.0/2.5	1
MASUDEN-R-18	300X40	2.0/3.0	1
MASUDEN-R-19	300X50	1.6/2.0	1
MASUDEN-R-20	300X50	2.0/2.0	1

Specification	Details
Light Duty Race Ways Light duty Race Ways with special perforation in the base with moderate ventilation with added cable support advantage.
Sheet Thickness	1 / 1.6 / 2 / 2.5 / 3.0 mm
Side Height	25 / 35 / 40 / 60 / 75 / 100 mm
Width	50 / 100 / 150 / 200 / 250 / 300 / 450 / 600 / 900 / 1000 / 1200 mm
Length	2500 / 3000 mm
Brand	MASUDEN
Unit	Meter
Medium Duty Race Ways Medium duty Race Ways with special perforation right angle edge in side rail for reinforcement and edge protection.
Sheet Thickness	1 / 1.6 / 2 / 2.5 / 3.0 mm
Side Height	25 / 35 / 40 / 60 / 75 / 100 mm
Width	50 / 100 / 150 / 200 / 250 / 300 / 450 / 600 / 900 / 1000 / 1200 mm
Length	2500 / 3000 mm
Brand	MASUDEN
Unit	Meter
Heavy Duty Race Ways Heavy duty Race Ways with special perforation in the base and rolled edge in side rail for reinforcement and edge protection including cable tray connector sets.
Sheet Thickness	1 / 1.6 / 2 / 2.5 / 3.0 mm
Side Height	25 / 35 / 40 / 60 / 75 / 100 mm
Width	50 / 100 / 150 / 200 / 250 / 300 / 450 / 600 / 900 / 1000 / 1200 mm
Length	2500 / 3000 mm
Brand	MASUDEN
Unit	Meter
