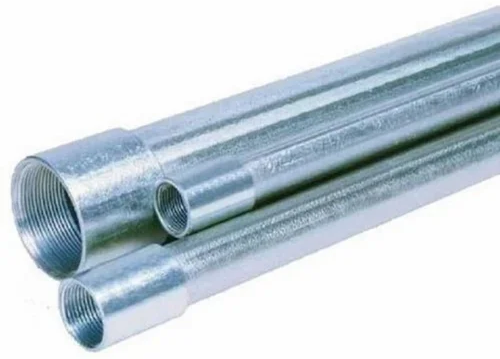

MASUDEN Hot Dipped Galvanized Conduits are engineered for the most demanding installs, allowing superior protection to electrical infrastructure for decades to come. The, ISI Marked, precision welded range of electrical conduits, along with the range of in house manufactured accessories, are used in places where a seamless electrical raceway is required that is resistant to corrosion, provides high tensile strength and makes future wiring changes easy.
| Nominal Size of Conduits (mm) | Outside Diameter (mm) | Tolerance of Outside Diameter (mm) | Wall Thickness of Conduit Pipes (mm) |
|---|---|---|---|
| 20 | 20 | -0.3 | 1.4 to 1.8 |
| 25 | 25 | -0.4 | 1.4 to 1.8 |
| 32 | 32 | -0.4 | 1.4 to 1.8 |
| 40 | 40 | -0.4 | 1.6 to 2.2 |
| 50 | 50 | -0.5 | 1.6 to 2.2 |

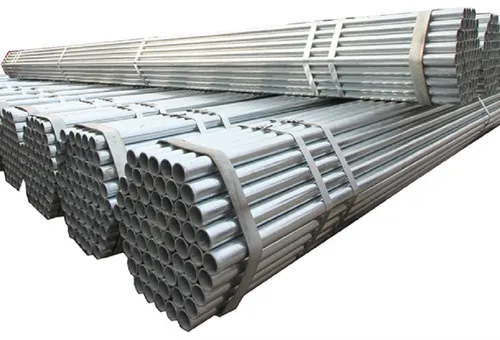

MASUDEN Range of ERW Stove Enamelled Conduits are engineered to provide the perfect safety for electrical conductors because it features great tensile strength, EMI shielding, and its smooth inner surface makes wire pulling effortless. MASUDEN ISI Marked, precision welded range of electrical conduits, along with its range of in house manufactured accessories, are used in places where a seamless electrical raceway is needed to provide resistance from impact and mechanical stress, Shielding from Electromagnetic interference as well as be seamless to make future wiring changes easy.
| Nominal Size of Conduits (mm) | Outside Diameter (mm) | Tolerance of Outside Diameter (mm) | Wall Thickness of Conduit Pipes (mm) |
|---|---|---|---|
| 20 | 20 | -0.3 | 1.4 to 1.8 |
| 25 | 25 | -0.4 | 1.4 to 1.8 |
| 32 | 32 | -0.4 | 1.4 to 1.8 |
| 40 | 40 | -0.4 | 1.6 to 2.2 |
| 50 | 50 | -0.5 | 1.6 to 2.2 |
MASUDEN Hot Dipped Galvanized Conduits are engineered for the most demanding installs, allowing superior protection to electrical infrastructure for decades to come. The, ISI Marked, precision welded range of electrical conduits, along with the range of in house manufactured accessories, are used in places where a seamless electrical raceway is required that is resistant to corrosion, provides high tensile strength and makes future wiring changes easy.
| Nominal Size | Outside Diameter | Tolerance | Minimum Inside Diameter (mm) | ||
|---|---|---|---|---|---|
| Light | Medium | Heavy | |||
| 20 | 20 | -0.3 | 17.4 | 16.9 | 15.8 |
| 25 | 25 | -0.4 | 22.1 | 21.4 | 20.6 |
| 32 | 32 | -0.4 | 28.6 | 27.8 | 26.6 |
| 40 | 40 | -0.4 | 35.8 | 35.4 | 34.4 |
| 50 | 50 | -0.5 | 45.1 | 44.3 | 43.2 |
Intended for telecommunication ducting and electrical installations – indoor, outdoor as well as underground, MASUDEN PLAST HDPE DUCTS are UV and environmental stress resistant, anti-termite and non-corroding and inert to chemicals found in soils.
Available in various diameters and grades, with a large variety of colour options, MASUDEN PLAST HDPE DUCTS also have low-friction interior finish for ease of cable pulling. MASUDEN range of HDPE ducts are flexible, yet stiff, and able to adjust to the most demanding jobsite conditions. They are in continuous/ coil form for handling purposes and are 6 to 8 times lighter than CI and GI pipes, thus reducing installation time. Being a cost effective solution, it is a highly demanded product.
